产品概述

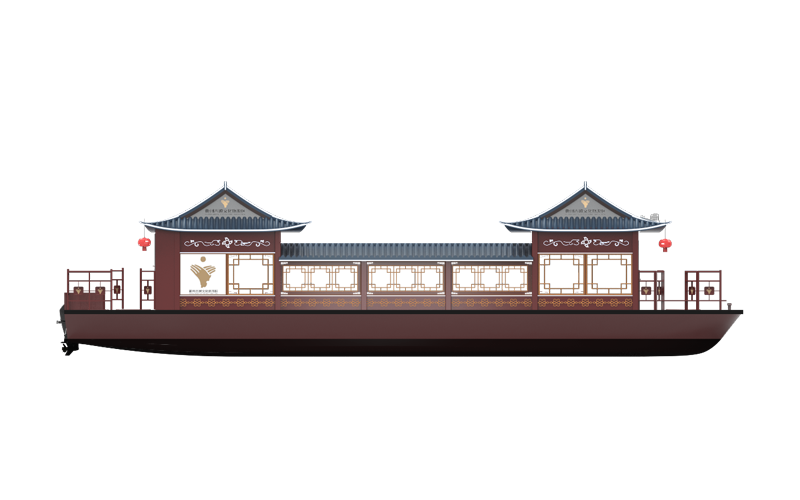

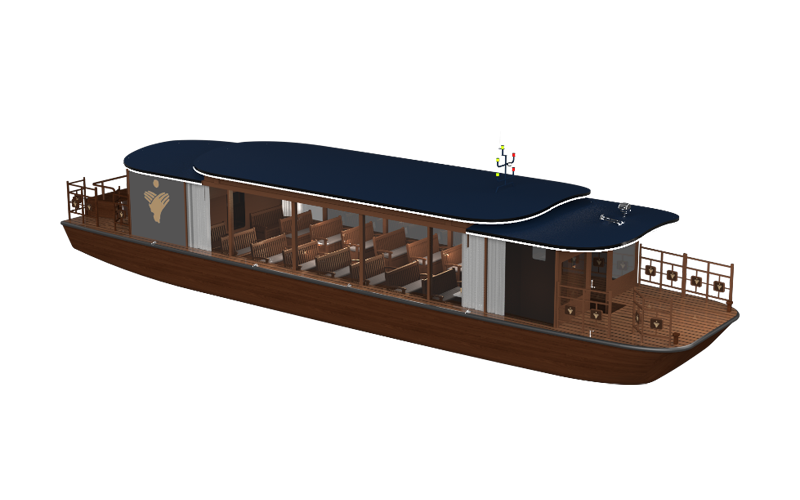

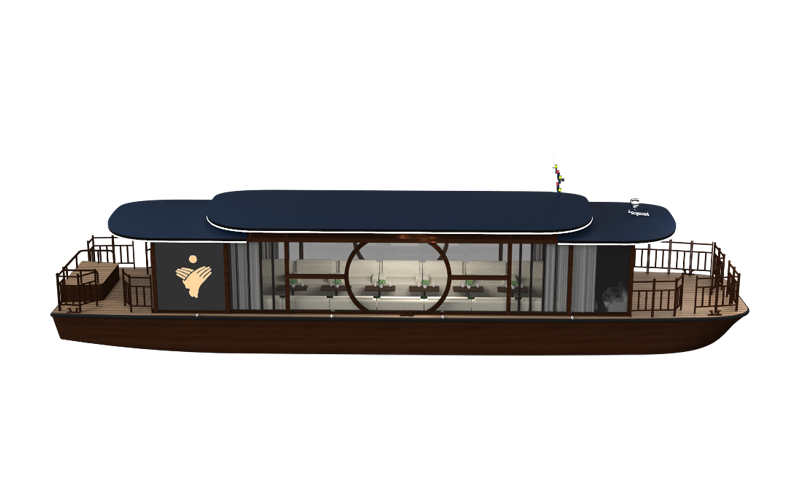

Designed primarily for inland rivers and lakes, the vessel is rated for Inland River Class B navigation. The hull plating, structure, and primary superstructure are constructed from marine-grade steel, while the roof and deckhouse sidewalls utilize glass-fiber reinforced materials. The vessel is an antique-style new energy leisure passenger ship.
产品优势
产品规格
|
LOA (m) |
17.50 |
|
Length (m) |
17.13 |
|
Total Beam (m) |
4.30 |
|
Beam (m) |
4.20 |
|
Overall Height (m) |
5.15 |
|
Depth (m) |
1.20 |
|
Full load displacement (t) |
29.00 |
|
Full load draft (m) |
0.58 |
|
Main engine |
2 × 30 kW electric outboard motors |
|
Max speed (km/h) |
13 |
|
Crew (personnel) |
2 |
|
Passengers (personnel) |
48 |
|
Navigation area |
Inland River Class B |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
