产品概述

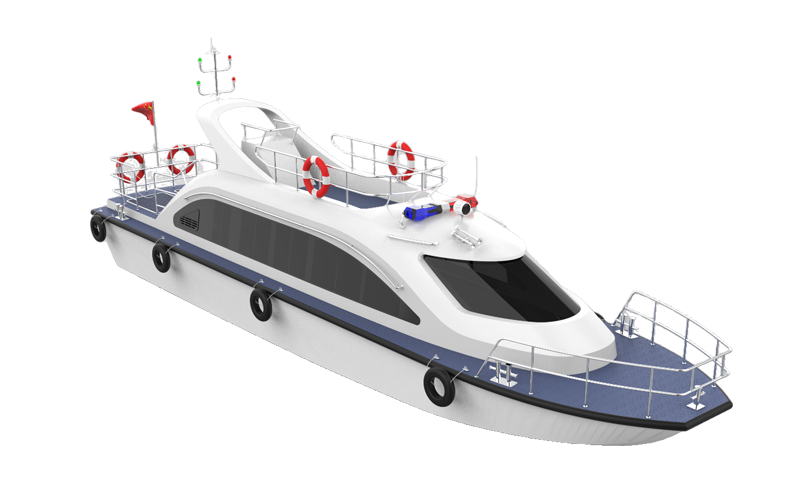

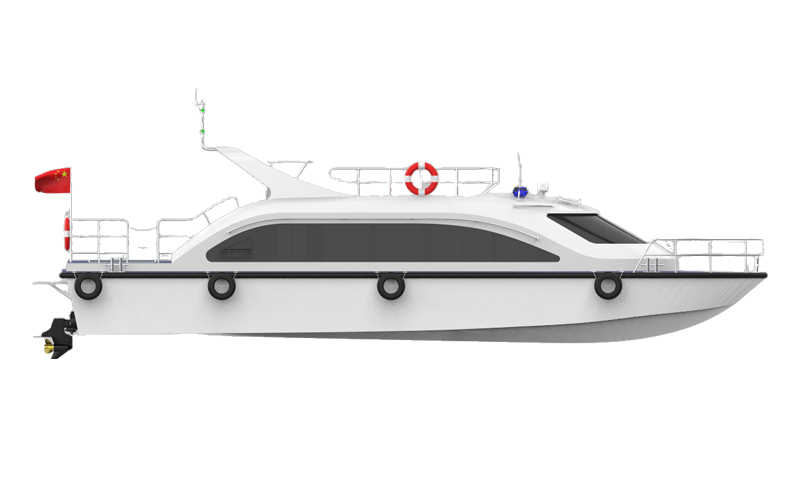

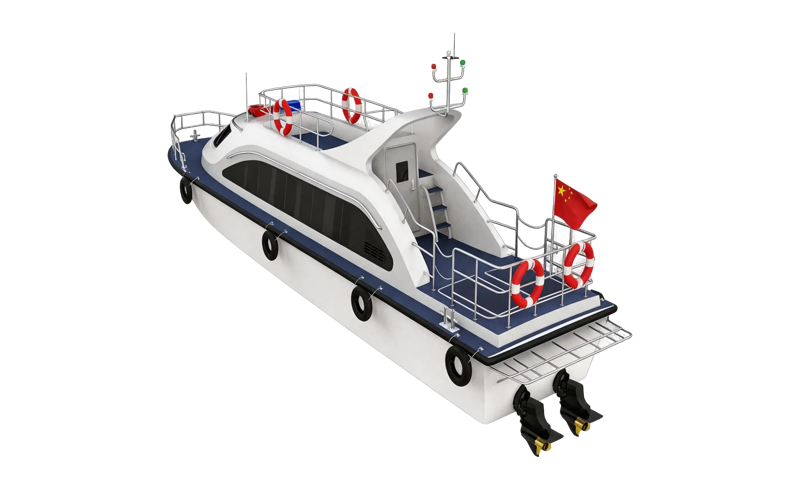

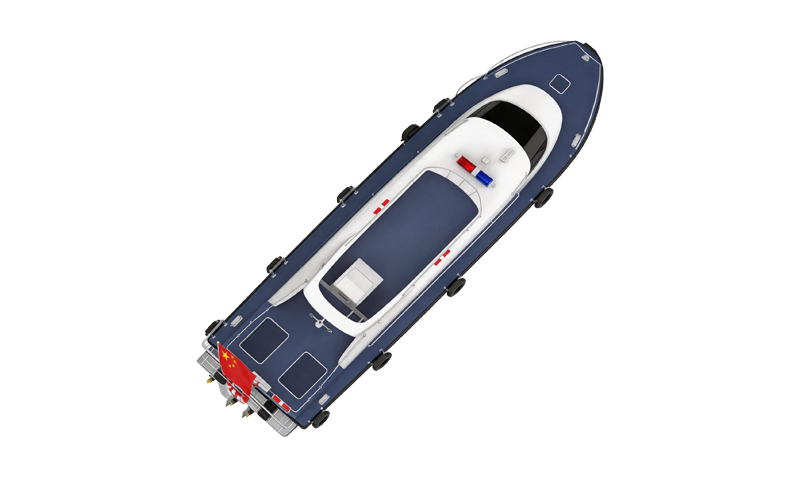

This vessel features a monohull, single-deck, and hard-chine design; Equipped with twin stern drives and twin-propeller propulsion; The main hull and deck are constructed from marine-grade aluminum alloy materials.
产品优势
产品规格
|
LOA (m) |
16.00 |
|
Length (m) |
13.94 |
|
Total Beam (m) |
4.10 |
|
Beam (m) |
4.00 |
|
Overall Height (m) |
3.73 |
|
Depth (m) |
1.0 |
|
Full load displacement (t) |
12.55 |
|
Full load draft (m) |
0.54 |
|
Main engine |
2×350hpQSD4.2ES350 |
|
Max speed (km/h) |
50 |
|
Crew (personnel) |
16 |
|
Navigation area |
Inland River Class A |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
