产品概述

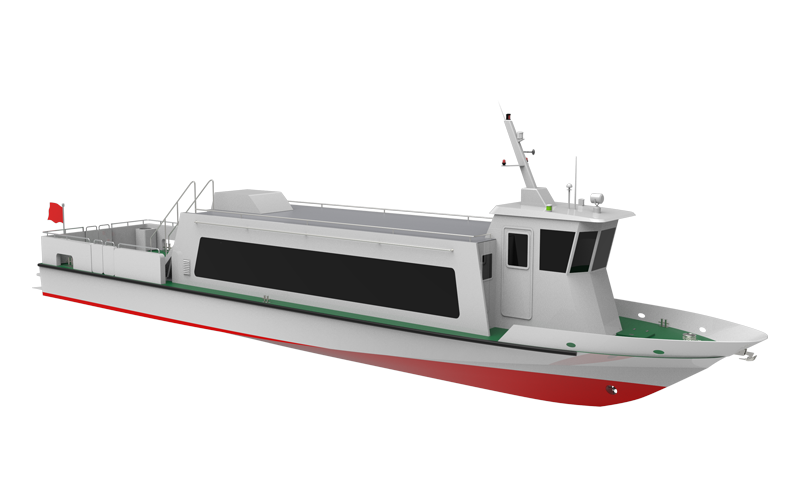

This vessel is an aluminum alloy, fully-enclosed hard-chine planing craft with a continuous main deck. It is powered by two stern-drive diesel engines installed in the engine room, which also serve steering functions. The craft operates smoothly and integrates design concepts focused on energy efficiency and high-speed performance. As a high-speed official vessel operating in Inland River Class B navigation areas, it is primarily used for hydrological environmental monitoring, law enforcement, and management.
产品优势
产品规格
|
LOA (m) |
12.80 |
|
Length (m) |
11.20 |
|
Total Beam (m) |
3.50 |
|
Overall Height (m) |
4.10 |
|
Depth (m) |
1.42 |
|
Full load displacement (t) |
10.15 |
|
Full load draft (m) |
0.49 |
|
Main engine |
VOLVO stern-drive engine 270 hp × 2 |
|
Crew (personnel) |
2 |
|
Occupants (personnel) |
10 |
|
Navigation area |
Inland River Class B |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
