产品概述

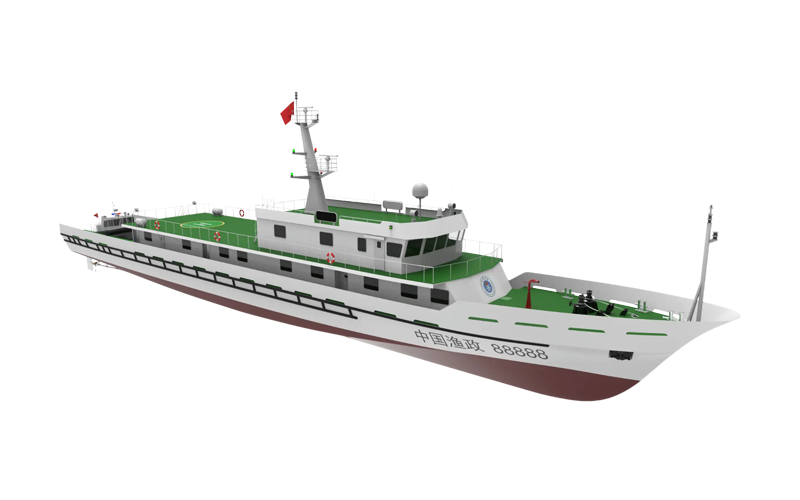

This vessel is a modern fishery patrol ship primarily tasked with patrolling the 200-nautical-mile Exclusive Economic Zone (EEZ), managing foreign-related fishery operations, and providing maritime search and rescue assistance. The hull design features a raked stem and V-shaped transom stern, constructed with a steel hull and aluminum alloy superstructure, featuring Ice Class B strengthening. The propulsion system consists of a triple-engine, triple-propeller, and triple-rudder conventional configuration, equipped with stabilizer fins to enhance seakeeping performance. The vessel features a continuous main deck with two deckhouses above, balancing an authoritative appearance for law enforcement with excellent performance in terms of speed, stability, and unsinkability, meeting requirements for coastal navigation areas.
产品优势
产品规格
|
LOA (m) |
63.00 |
|
Design length on waterline (m) |
59.00 |
|
Length between perpendiculars (m) |
57.80 |
|
Moulded beam (m) |
8.80 |
|
Depth (m) |
4.40 |
|
Design draft (m) |
2.70 |
|
Camber (m) |
0.12 |
|
Main engine power |
3×1998kW×1900rpm |
|
Trial speed (km/h) |
≥43 |
|
Navigation area |
Coastal navigation area, Ice Class B strengthening |
|
Crew (personnel) |
17 |
|
Crew (persons) |
7 |
|
Frame spacing (mm) |
600 |
备注：产品参数及图片仅供参考；如有变动，不另行通知。
