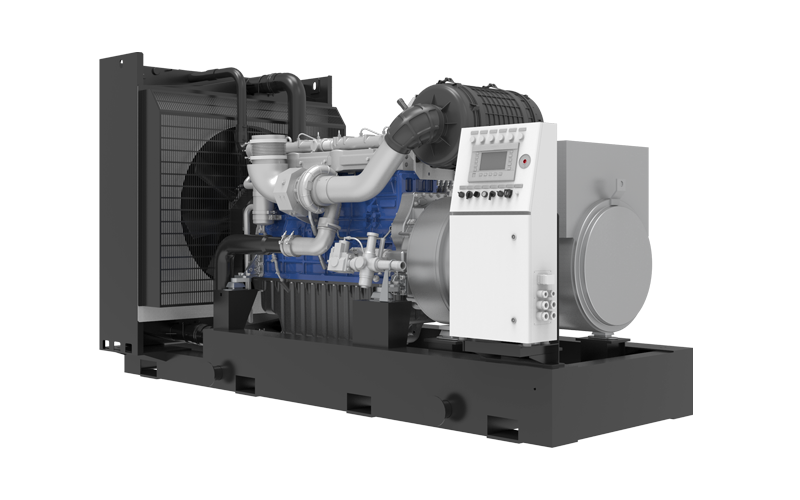

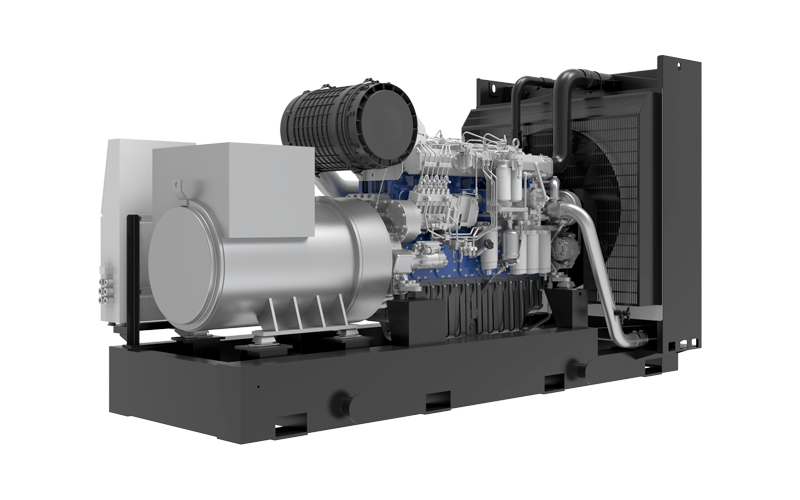

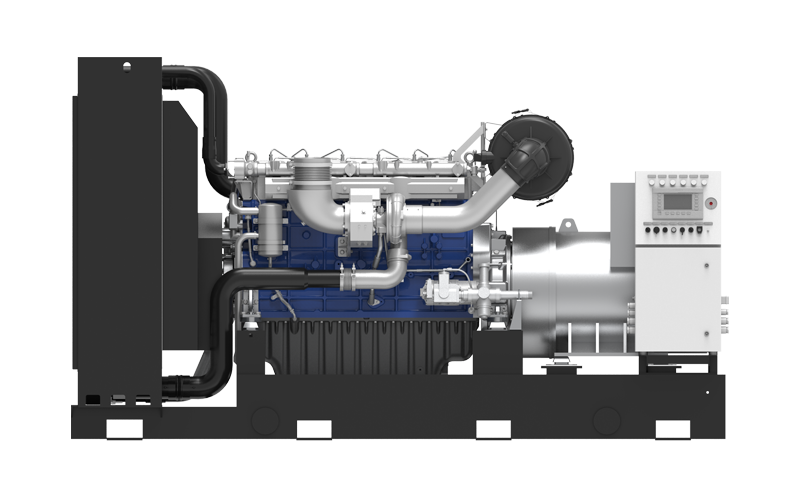

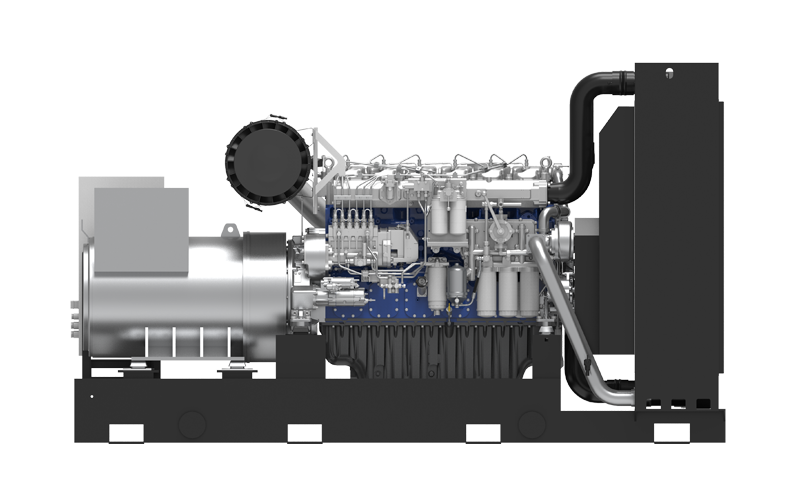

Weichai develops a full-range of marine emergency generator sets in accordance with marine industry specifications, with power coverage from 30 kW to 1000 kW. The units comply with the emergency start-up and load-on requirements for vessels specified by classification societies. They deliver excellent low-temperature starting performance: normal starting at an ambient temperature of -20 ℃ with auxiliary heating available. Multiple starting modes complying with classification society rules are supported, and the sets are capable of 100 % emergency load single-step loading. Manufacturing and testing of the generator sets are performed in accordance with the general technical requirements of GB/T 13032-2010 Marine Diesel Generator Sets.
产品优势
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
| Engine series | Set model | Genset power(kW) | Engine model | Frequency (Hz) | Governor | Rating | Main Dimensions(L*W*H)(mm) | Dry Weight(kg) |
| WP4 | CCFJ30Y-W# | 30 | WP4CD66E200 | 50 | Elec | COP | 2020*914*1502 | 950 |
| WP4 | CCFJ40Y-W# | 40 | WP4CD66E200 | 50 | Elec | COP | 2020*914*1502 | 1100 |
| WP4 | CCFJ50Y-W# | 50 | WP4CD66E200 | 50 | Elec | COP | 2020*914*1502 | 1150 |
| WP4 | CCFJ64Y-W# | 64 | WP4CD100E200 | 50 | Elec | PRP | 2282*914*1502 | 1380 |
| WP4 | CCFJ75Y-W# | 75 | WP4CD100E200 | 50 | Elec | PRP | 2282*914*1502 | 1430 |
| WP4 | CCFJ30Y-W# | 30 | WP4CD66E201 | 60 | Elec | COP | 2020*914*1502 | 950 |
| WP4 | CCFJ40Y-W# | 40 | WP4CD66E201 | 60 | Elec | COP | 2020*914*1502 | 1100 |
| WP4 | CCFJ50Y-W# | 50 | WP4CD66E201 | 60 | Elec | COP | 2020*914*1502 | 1150 |
| WP4 | CCFJ64Y-W# | 64 | WP4CD100E201 | 60 | Elec | PRP | 2282*914*1502 | 1380 |
| WP4 | CCFJ75Y-W# | 75 | WP4CD100E201 | 60 | Elec | PRP | 2282*914*1502 | 1430 |
| WP6 | CCFJ90Y-W# | 90 | WP6CD132E200 | 50 | Elec | COP | 2555*950*1317 | 1530 |
| WP6 | CCFJ100Y-W# | 100 | WP6CD132E200 | 50 | Elec | COP | 2605*950*1317 | 1530 |
| WP6 | CCFJ120Y-W# | 120 | WP6CD152E200 | 50 | Elec | PRP | 2605*950*1317 | 1600 |
| WP6 | CCFJ90Y-W# | 90 | WP6CD132E201 | 60 | Elec | COP | 2555*950*1317 | 1530 |
| WP6 | CCFJ100Y-W# | 100 | WP6CD132E201 | 60 | Elec | COP | 2605*950*1317 | 1530 |
| WP6 | CCFJ120Y-W# | 120 | WP6CD158E201 | 60 | Elec | PRP | 2605*950*1317 | 1600 |
| WP10 | CCFJ150Y-W# | 150 | WP10CD200E200 | 50 | Elec | COP | 2930*1180*1799 | 2250 |
| WP10 | CCFJ180Y-W# | 180 | WP10CD238E200 | 50 | Elec | COP | 2930*1180*1799 | 2290 |
| WP10 | CCFJ200Y-W# | 200 | WP10CD264E200 | 50 | Elec | PRP | 2930*1180*1522 | 2290 |
| WP10 | CCFJ150Y-W# | 150 | WP10CD200E201 | 60 | Elec | COP | 2930*1180*1799 | 2250 |
| WP10 | CCFJ180Y-W# | 180 | WP10CD238E201 | 60 | Elec | COP | 2930*1180*1799 | 2290 |
| WP10 | CCFJ200Y-W# | 200 | WP10CD264E201 | 60 | Elec | PRP | 2930*1180*1522 | 2290 |
| WP12 | CCFJ250Y-W# | 250 | WP12CD317E200 | 50 | Elec | PRP | 2910*1180*1790 | 2610 |
| WP12 | CCFJ250Y-W# | 250 | WP12CD317E201 | 60 | Elec | PRP | 2910*1180*1790 | 2610 |
| WP13 | CCFJ300Y-W# | 300 | WP13CD385E200 | 50 | Elec | PRP | 3072*1186*1587 | 2750 |
| WP13 | CCFJ300Y-W# | 300 | WP13CD385E201 | 60 | Elec | PRP | 3072*1186*1587 | 2750 |
| 6M33 | CCFJ350Y-W# | 350 | 6M33CD447E200 | 50 | Elec | COP | 3740*1700*2150 | 4850 |
| 6M33 | CCFJ400Y-W# | 400 | 6M33CD484E200 | 50 | Elec | COP | 3807*1700*2150 | 4900 |
| 6M33 | CCFJ450Y-W# | 450 | 6M33CD550E200 | 50 | Elec | PRP | 3941*1700*2150 | 5750 |
| 6M33 | CCFJ500Y-W# | 500 | 6M33CD605E200 | 50 | Elec | PRP | 3941*1700*2150 | 5750 |
| 6M33 | CCFJ350Y-W# | 350 | 6M33CD447E201 | 60 | Elec | COP | 3740*1700*2150 | 4850 |
| 6M33 | CCFJ400Y-W# | 400 | 6M33CD484E201 | 60 | Elec | COP | 3807*1700*2150 | 4900 |
| 6M33 | CCFJ470Y-W# | 470 | 6M33CD575E201 | 60 | Elec | PRP | 3941*1700*2150 | 5750 |
| 6M33 | CCFJ500Y-W# | 500 | 6M33CD633E201 | 60 | Elec | PRP | 3941*1700*2150 | 5750 |
| 12M33 | CCFJ600Y-W# | 600 | 12M33CD748E200 | 50 | Elec | COP | 4800*2198*2463 | 8400 |
| 12M33 | CCFJ700Y-W# | 700 | 12M33CD902E200 | 50 | Elec | COP | 4800*2198*2463 | 8700 |
| 12M33 | CCFJ800Y-W# | 800 | 12M33CD968E200 | 50 | Elec | PRP | 5200*2198*2463 | 8900 |
| 12M33 | CCFJ900Y-W# | 900 | 12M33CD1100E200 | 50 | Elec | PRP | 5200*2198*2463 | 8900 |
| 12M33 | CCFJ1000Y-W# | 1000 | 12M33CD1210E200 | 50 | Elec | PRP | 5200*2198*2463 | 10200 |
| 12M33 | CCFJ600Y-W# | 600 | 12M33CD748E201 | 60 | Elec | COP | 4800*2198*2463 | 8400 |
| 12M33 | CCFJ700Y-W# | 700 | 12M33CD902E201 | 60 | Elec | COP | 4800*2198*2463 | 8700 |
| 12M33 | CCFJ800Y-W# | 800 | 12M33CD968E201 | 60 | Elec | PRP | 5200*2198*2463 | 8900 |
| 12M33 | CCFJ900Y-W# | 900 | 12M33CD1100E201 | 60 | Elec | PRP | 5200*2198*2463 | 8900 |
| 12M33 | CCFJ1000Y-W# | 1000 | 12M33CD1210E201 | 60 | Elec | PRP | 5200*2198*2463 | 10200 |
Note:Overall dimensions and weight are for reference only. Please consult relevant personnel for unit selection.
