产品概述

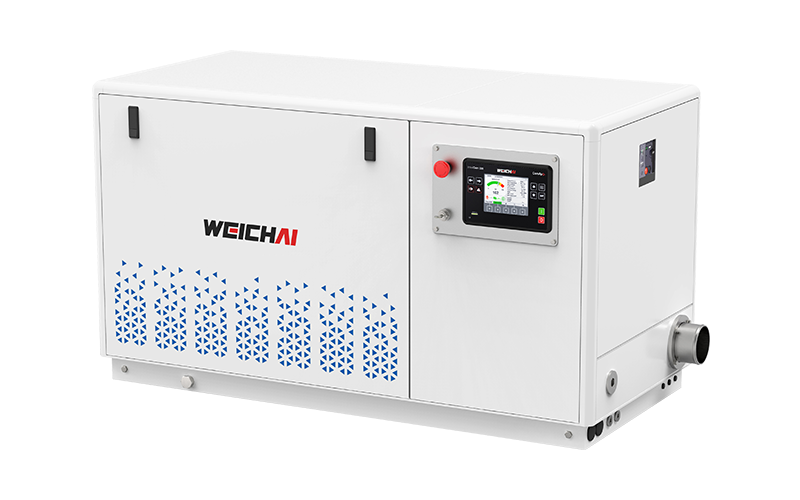

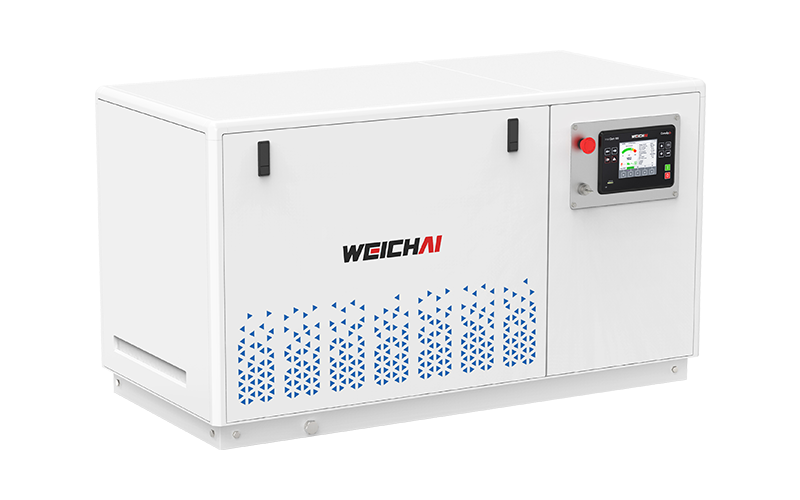

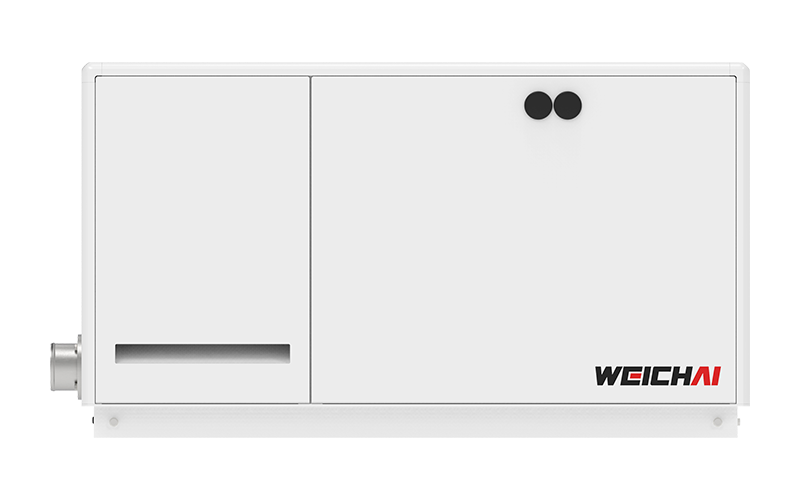

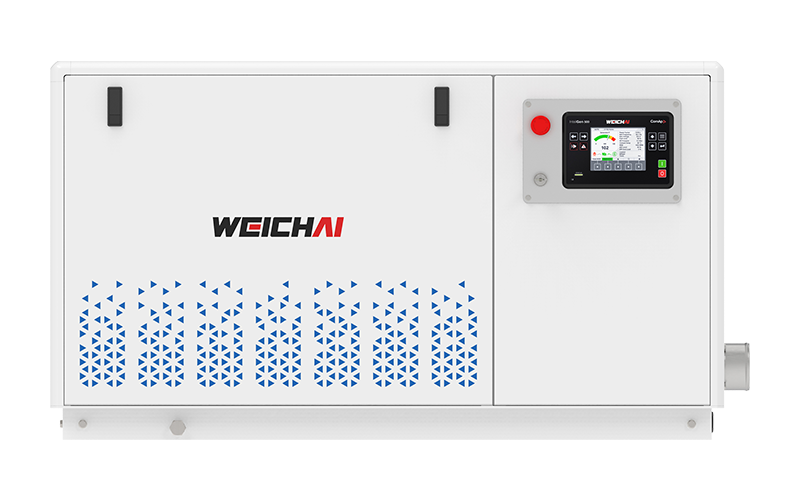

Weichai silent generator sets leverage Weichai’s R&D system and take into account demands from high end yacht customers, representing high performance, high efficiency and low noise generating units specially adapted for global high end yacht applications. Designed with advanced CFD and CAE simulation technologies, the units achieve ultimate compactness and comfort, delivering a quiet and pleasant on water entertainment environment.
产品优势
产品规格
备注：产品参数及图片仅供参考；如有变动，不另行通知。
型谱表
| Engine series | Set model | Genset power(kW) | Engine model | Frequency (Hz) | Vol. | Phase | Emission | Main Dimensions(L*W*H)(mm) | Dry Weight(kg) |
| WP2.5N | CCFJ20J-WY8 | 20 | WP2.5NCD41E410 | 50 | AC230V | 1 | NR | 1350*660*770 | 589 |
| WP2.5N | CCFJ24J-WY8 | 24 | WP2.5NCD41E410 | 50 | AC230V | 1 | NR | 1350*660*770 | 589 |
| WP2.5N | CCFJ28J-WY8 | 28 | WP2.5NCD41E410 | 50 | AC230V | 1 | NR | 1350*660*770 | 589 |
| WP2.5N | CCFJ30J-WY8 | 30 | WP2.5NCD41E410 | 50 | AC230V | 1 | NR | 1370*660*770 | 595 |
| WP2.5N | CCFJ35J-WY8 | 35 | WP2.5NCD46E210 | 50 | AC230V | 1 | NR | 1370*660*770 | 595 |
| WP4.6N | CCFJ45J-WY8 | 45 | WP4.6NCD77E220 | 50 | AC400V/230V | 3 | NR | 1650*820*1010 | 1028 |
| WP4.6N | CCFJ55J-WY8 | 55 | WP4.6NCD77E220 | 50 | AC400V/230V | 3 | NR | 1650*820*1010 | 1065 |
| WP4.6N | CCFJ70J-WY8 | 70 | WP4.6NCD99E220 | 50 | AC400V/230V | 3 | NR | 1650*820*1010 | 1065 |
| WP4.6N | CCFJ80J-WY8 | 80 | WP4.6NCD132E220 | 50 | AC400V/230V | 3 | NR | 1768*820*1010 | 1166 |
| WP4.6N | CCFJ100J-WY8 | 100 | WP4.6NCD132E220 | 50 | AC400V/230V | 3 | NR | 1768*820*1010 | 1166 |
| WP2.3 | CCFJ16J-W2 | 16 | WP2.3CD25E200 | 50 | AC400V | 3 | NR | 1555*875*980 | 650 |
| WP2.3 | CCFJ20J-W2 | 20 | WP2.3CD33E200 | 50 | AC400V | 3 | NR | 1620*870*1020 | 660 |
| WP2.3 | CCFJ24J-W2 | 24 | WP2.3CD33E200 | 50 | AC400V | 3 | NR | 1620*870*1020 | 660 |
| WP2.3 | CCFJ30J-W2 | 30 | WP2.3CD40E200 | 50 | AC400V | 3 | NR | 1620*870*1020 | 660 |
| WP2.3N | CCFJ40J-W12 | 40 | WP2.3NCD55E220 | 50 | AC400V | 3 | NR | 1410*840*1041 | 1000 |
| WP2.3N | CCFJ50J-W12 | 50 | WP2.3NCD66E220 | 50 | AC400V | 3 | NR | 1410*840*1041 | 1010 |
| WP4.1N | CCFJ64J-W1 | 64 | WP4.1NCD83E220 | 50 | AC400V | 3 | NR | 1864*923*1066 | 1235 |
| WP4.1N | CCFJ75J-W1 | 75 | WP4.1NCD100E220 | 50 | AC400V | 3 | NR | 1864*923*1066 | 1255 |
| WP6 | CCFJ90J-W9 | 90 | WP6CD132E200 | 50 | AC400V | 3 | NR | 2510*1100*1400 | 1700 |
| WP6 | CCFJ100J-W9 | 100 | WP6CD132E200 | 50 | AC400V | 3 | NR | 2510*1100*1400 | 1750 |
| WP6 | CCFJ120J-W9 | 120 | WP6CD152E200 | 50 | AC400V | 3 | IMO II | 2510*1100*1400 | 1750 |
| WP10 | CCFJ150J-WQ | 150 | WP10CD200E220 | 50 | AC400V | 3 | IMO II | 2742*1189*1545 | 2350 |
| WP10 | CCFJ180J-WQ | 180 | WP10CD238E220 | 50 | AC400V | 3 | IMO II | 2742*1189*1545 | 2390 |
| WP10 | CCFJ200J-WQ | 200 | WP10CD264E220 | 50 | AC400V | 3 | IMO II | 2742*1189*1545 | 2390 |
| WP13 | CCFJ250J-WQ | 250 | WP13CD385E200 | 50 | AC400V | 3 | IMO II | 3176*1250*1555 | 2650 |
| WP13 | CCFJ300J-WQ | 300 | WP13CD385E200 | 50 | AC400V | 3 | IMO II | 3176*1250*1555 | 2700 |
Note:Overall dimensions and weight are for reference only. Please consult relevant personnel for unit selection.
